Proven Performance via KTR Testing

Certified by Korea Testing & Research Institute (KTR). Maintains structural-level strength at specific gravity 0.65 (-34%).

Property	Non-Foamed (p0=0.99 g/cm³)	Eco-Foam Measured (p=0.65, -34%)	Retention
Flexural Strength	24.5 MPa	13–15 MPa	55–60%
Flexural Modulus	1.8 GPa	1.0–1.1 GPa	56–61%
Izod Impact	97.5 J/m	64–77 J/m	66–79%
Compression @50%	41.1 MPa	11–14 MPa	27–34%

Foam Scaling Law Verification

Measured properties match Gibson-Ashby model predictions.

• Flexural Strength: σ/σ0 = (p/p0)^1.5
• Flexural Modulus: E/E0 = (p/p0)^1.28
• Izod Impact: I/I0 = (p/p0)^0.79

Structural-level strength and impact maintained at KTR-certified specific gravity 0.65 (-34%)

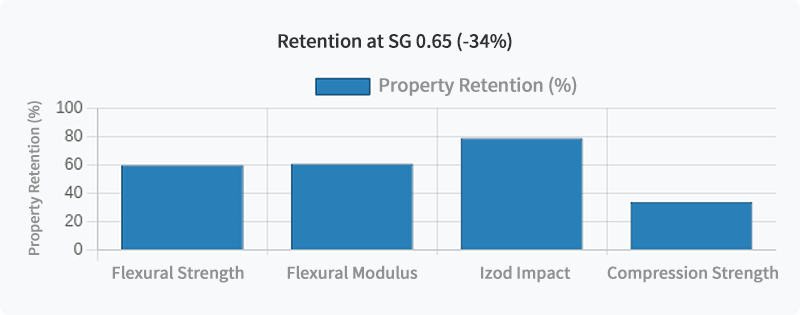

Retention vs Weight Reduction

Optimal Foaming Analysis

• Property requirements: σ ≥ 12 MPa, E > 0.90 GPa, I > 65 J/m
• Optimal density: p*/p0 = 0.622 (-38% weight reduction)
• Current measurement (p=0.65) within safe range
